| 別名 | 小盤紙分切機 |
|---|---|
| 類型 | 自動 |
| 用途 | 盤紙分切設備 |
| 自動化程度 | 全自動 |
| 包裝類型 | 裸裝 |
| 品牌 | 中順機械 |
| 型號 | ZSXP-1880 |
| 加工定制 | 是 |

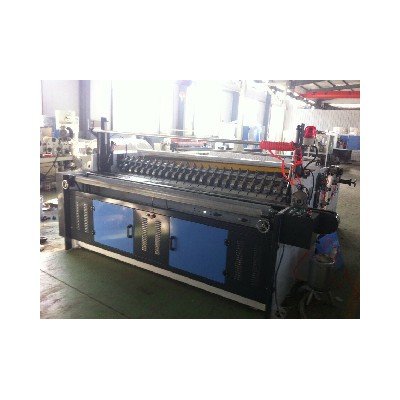

ZSXP-B-1880/3150小盤紙復卷機
ZSXP-B-1880/3150 JRT/Industrial Roll Rewinder

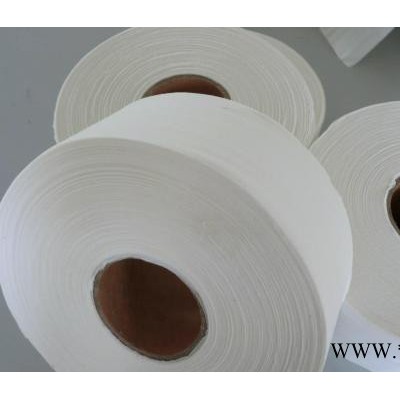

ZSXP-B小盤紙分切復卷機是生產小盤紙和卷筒擦手紙兩用設備,可在短時間內隨意更換;具有壓花、打孔、分切和復卷一次完成的功能,帶氣動上紙、氣動皮帶傳動、松緊調節等裝置,采用氣脹軸和無氣漲軸兩種收卷方式.
主要特點:
1、 采用氣脹軸收卷,使紙管定位準確簡便;
2、 無氣漲軸收卷，操作更方便，減輕勞動強度。
3、壓邊系統;采用鋼對鋼壓邊,獨立氣缸調節,方便調節,達到每層紙不分層;
4、臥式退紙架,氣動上紙,氣動式寬皮帶送紙,每卷原紙均有獨立張力調整裝置;
5、采用前后點動開關牽引原紙,操作更簡便、安全.
6、根據客戶所需,增加修邊噴膠封口功能。

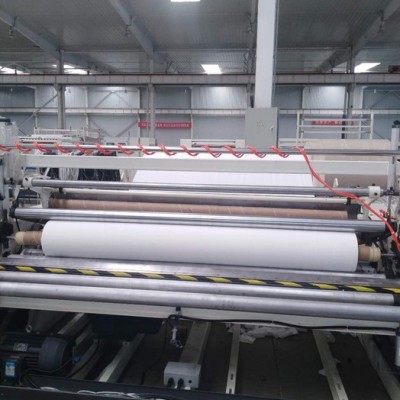

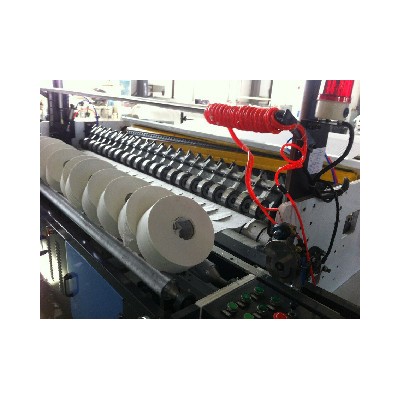

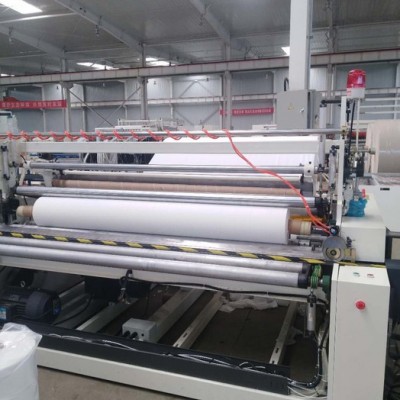

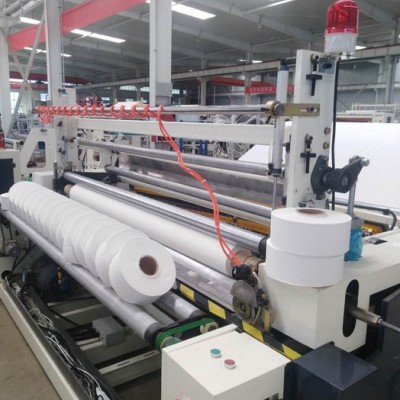

ZSXP-B Industrial Roll Slitting Rewinder can make both JRT industrial roll and rolled hand towel, it's easy to change in a short time With edge embossing, perforating, slitting and rewinding functions. Pneumatic control jumbo roll loading, belt driving and web tension control devices. The finished roller rewind by air-fill shaft or shaftless.
Main Features:
1. With air-fill shaft to rewind the finished products. the orientation of core easy and nicety.
2. No air shaft winding, more convenient operation, reduce labor intensity.
3. Edge embossing unit: Adopt steel to steel edge embossing, independent cylinder controlling, easy to additionust, everylayer not separate:
4. Horizontal style unwinding stand, pneumatic jumbo roll loading, pneumatic belt driving, each jumbo roll with individual tension adjust device
5. Using front and rear inching switch to traction base paper, operation more simple and safe
6. As required by customer, it can add tail sealing function.
| 技術參數 | ||||||
| 機器型號 Machine Model | 1575 | 1880 | 2400 | 2600 | 3150 | 3500 |
| 原紙寬度(mm） Raw Material Width | 1800 | 2100 | 2400 | 2500 | 3000 | 3500 |
| 成品直徑(mm） Finished Roll Diameteo | Φ90~300(松緊可調） Φ90-300 mm(Tightness adjustable) | |||||
| 原紙直徑(mm) Raw Material Diameter | Φ1100(其他規格請指定) Φ1100 mm(Other sizes are available） | |||||
| 原紙紙芯內徑 Raw Material Core Diameter | 76.2mm(其它規格請指定) (76.2 mm）(other sizes are available） | |||||
| 打孔節距(mm) Perforation (to be appoint) | 90-160mm | |||||
| 加工能力 Speed | 180-200米/分鐘 180-200m/min | |||||
| 收卷 Rewinding | 氣漲軸 By air- shaft | |||||
| 壓花系統 Embossing Unit | 單壓花,雙面壓花,鋼對鋼壓花 Single ply embos- sing, double ply embossing, steel to steel embossing | |||||
| 壓花底輥 Bottom Embossing Roller | 毛布輥,羊毛輥,膠輥 Felt roller, Paper roller, Rubber roller | |||||
| 退紙架 Unwinding Unit | 1-3層(層數請指定） 1-3ply | |||||
| 壓光 Calendaring Unit | 鋼對鋼,鋼對膠 Steel to steel, steel to rubber | |||||
| 氣動系統 Pneumatic system | 3匹空壓機,壓力5kg/cm2Pa(客戶自備) 3 HP air compressor, Mini pressure 5kg/cm Pa(Provided by clienti) | |||||
